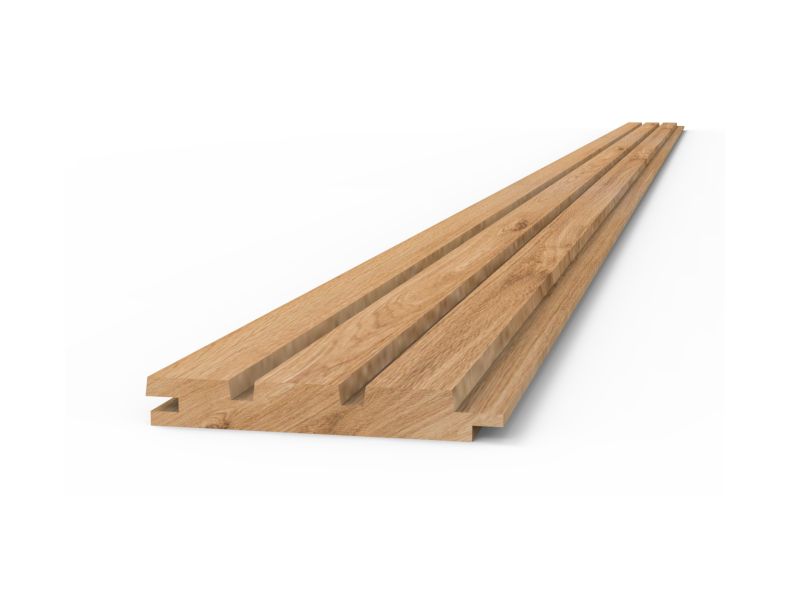

• HC900 Slatted

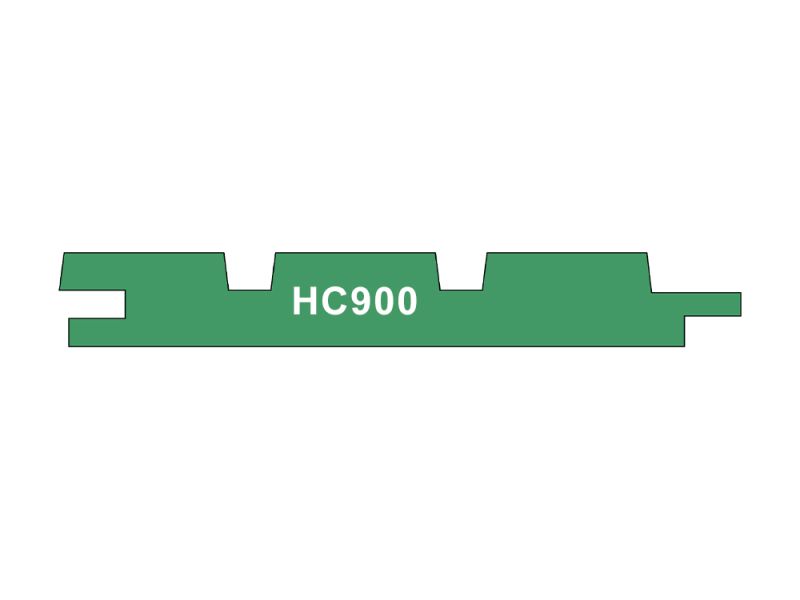

  • HC900_drawing
  • HC900

Slatted

This profile is becoming an increasingly popular choice for contemporary builds, with the defined gaps on each board forming a sleek, subtle shadow. Perfect for narrower and smaller areas of cladding, the thin, batten-like appearance gives a powerful aesthetic with sharp, attractive lines that evolve with the movement of the sun. The shadow gap on this profile appears deeper than the more common tongue and groove shadow gap. The profile can be fixed with finishing screws through the grooves, resulting in a hidden fixing.

DOWNLOAD SPEC SHEET
DOWNLOAD DRAWING

Send us your enquiry!

Call our friendly team on 01460 241777

or email us at sales@hewinsoak.com

Product Details

  • Orientation

    Horizontal | Vertical

  • Fixing Visibility

    Invisible

  • Standard surface option

    Planed

  Overall width Thickness Face width*
Air Dried Oak 142mm 20mm 132mm
Canadian WRC 142mm 18mm 132mm
Thermowood 142mm 18mm 132mm
Accoya 142mm 20mm 132mm

*Face width includes a 4mm expansion gap.

Interested in creating a project with us?
Give us a call on 01460 241777 or email us at sales@hewinsoak.com
